The Spirit 1.0 Plus is a 3 hp electric outboard motor. The motor is specially developed for dinghies, sailboats and tenders up to 1.5 tonnes. It features a 1276Wh integrated lithium battery for long boating trips. The motor is portable, manoeuvrable and d Read more.
XXL Water, your official dealer for ePropulsion electric outboard motors. Here you will find all the information you need about the ePropulsion Spirit 1.0 Plus.
The ePropulsion Spirit 1.0 Plus is an innovative, quiet and powerful electric outboard motor. With an output of 1000 W and torque of 6.3 Nm, this motor offers impressive performance compared to conventional petrol-powered motors of similar size. The engine is suitable for both recreational and professional use.
One of the main advantages of the ePropulsion Spirit 1.0 Plus is its quiet operation. The engine is almost silent, ensuring a pleasant boating experience without noise pollution. Moreover, the engine is eco-friendly and does not emit any harmful substances, which is good for the environment and aquatic life.

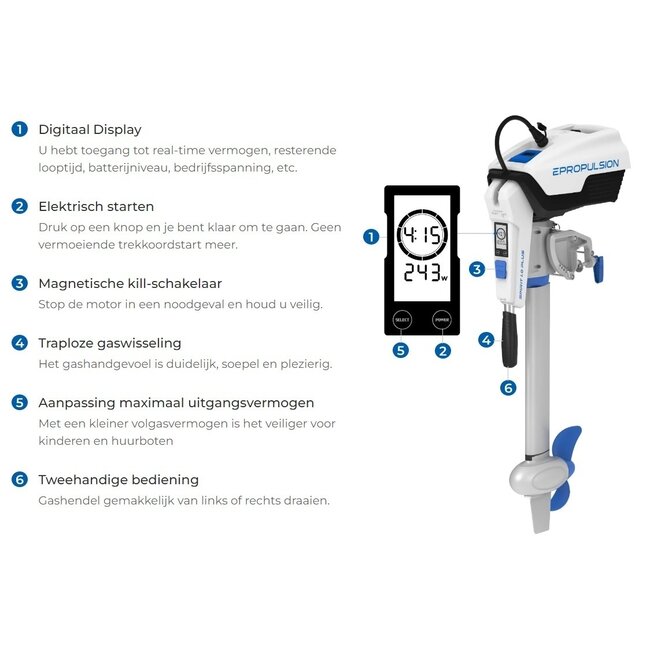

The ePropulsion Spirit 1.0 Plus is designed for easy installation and use. The motor is lightweight and compact, making it easy to handle and taking up little space. The motor also has intuitive controls, making it easy to adjust the speed and direction of the motor.
Another advantage of the ePropulsion Spirit 1.0 Plus is its long battery life. The motor comes with a lithium battery with a capacity of 1276 Wh, which is enough for a maximum cruising time of 6 hours at low speeds. Moreover, the battery can be charged quickly, allowing you to get back on the water quickly.
As an official dealer of ePropulsion, XXL Water also offers excellent customer service and support. We are here to answer all your questions and help you choose the right motor for your needs. We also offer installation and maintenance services to ensure your motor is always in top condition.
| Low power performance (approximate) | |
|---|---|
| Power | Low (65 W) |
| Speed | 4 km/h |
| Distance | 75 km |
| Operating time | 19 hours |
| Half-power performance (approximate) | |
|---|---|
| Power | Half (250 W) |
| Speed | 7 km/h |
| Distance | 35 km |
| Operating time | 5 hours |
| Full-power performance (approximate) | |
|---|---|
| Power | Full (1000 W) |
| Speed | 10 km/h |
| Distance | 12.5 km |
| Operating time | 1 hour and 15 minutes |
In short, the ePropulsion Spirit 1.0 Plus is an excellent choice for anyone looking for a powerful, quiet and eco-friendly outboard motor. At XXL Water, we are happy to help you find the right engine for your boat and needs. Contact us for more information or to make an appointment for installation or maintenance.
| Brand: | ePropulsion |
| Model / Type: | Spirit 1.0 Plus |
| Thrust (lbs): | 4 hp |
| Tail: | Short tail or long tail |
| Shaft length in cm: | 62.5 cm (short-tail) 75.0 cm (long-tail) |
| Colour: | grey/blue |
| Speed control: | stepless |
| Salt water suitable: | Yes |
| Voltage: | 48V |
| Integrated battery: | Yes |
| Input power in watts: | 1000 |
| Output power in watts: | |
| Similar to in power (HP): | 4 |
| Comparable to in thrust (HP): | 4 |
| Rated voltage: | |
| Maximum charging voltage: | |
| Total weight in kg: | 19,4 |
| Motor weight without battery in kg: | 10,6 |
| Battery weight in kg: | 8,8 |
| Alternative propeller options: | No |
| Maximum propeller speed in rpm: | 1200 |
| Steering: | Baton (Tiller) |
| Steering: | 360° (fixable) |
| Tilting up: | Yes |
| Maximum tilt angle: | 70° |
| Trim positions of the motor: | 4 steps 0°, 7°, 14° and 21° |
| Integrated on-board computer: | Yes |
| Forward and reverse: | Yes |
| Standard propeller v = speed in km/h by p = power in watts: | 11″ × 5.8″ 2-blade composite propeller |
