the Jabsco Par Max HD4 Drinking Water Pump, a high-quality pump that easily delivers 15 litres of water per minute. This self-priming pump comes in two variants, 25 psi and 40 psi, and is available in both 12 and 24 volts. Read more.

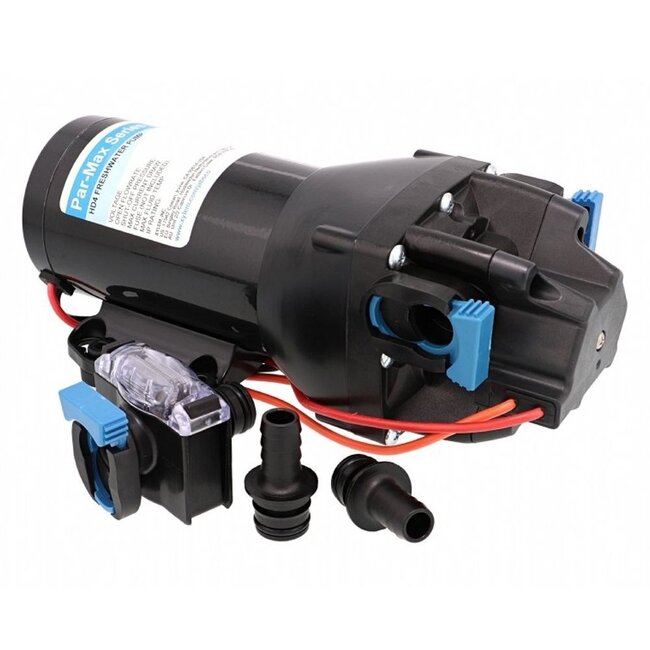

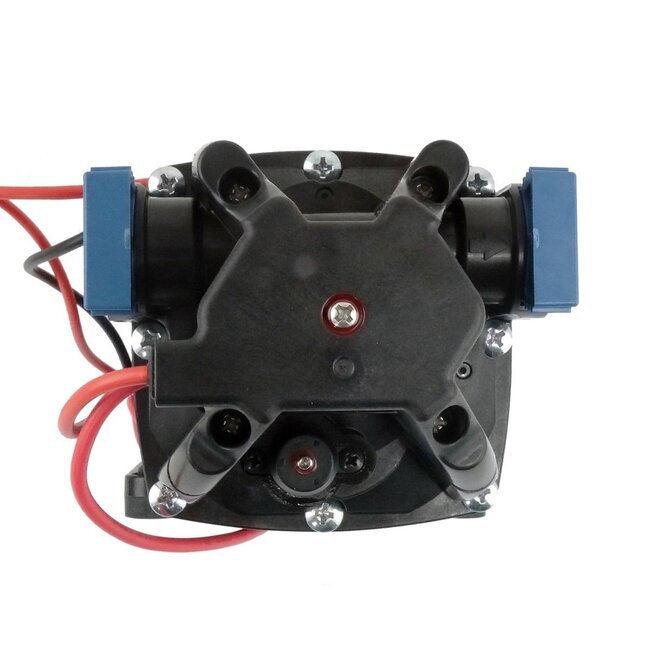

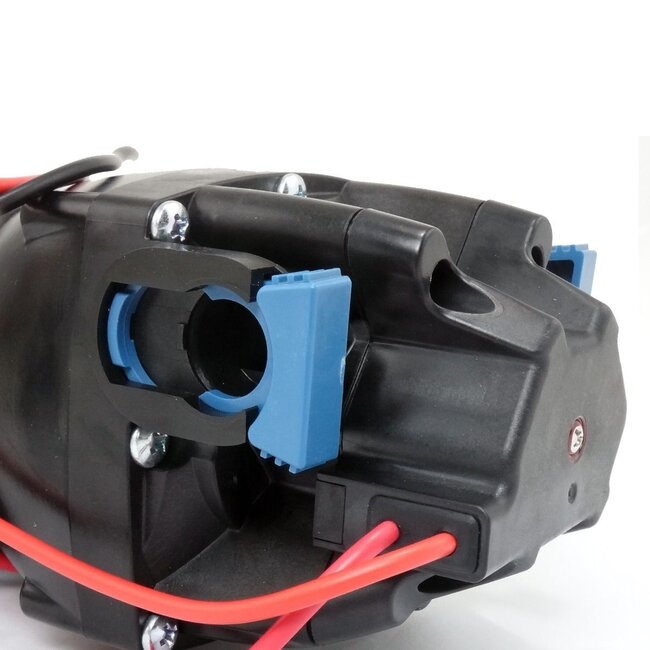

Meet the Jabsco Par Max HD4 Drinking Water Pump, a high-quality pump that easily delivers 15 litres of water per minute. This self-priming pump comes in two variants, 25 psi and 40 psi, and is available in both 12 and 24 volts. If your boat is equipped with four taps, then the Par Max HD4 is an essential! The Jabsco Par Max HD4 is known not only for its impressive performance, but also for its durability. It has the capacity to run dry and features overheating protection, which contributes to an extended lifespan. An added advantage of the Par Max HD4 is that no additional pressure vessel is required.
The dimensions of the Jabsco Par Max HD4 are 240x104x97 mm (length x width x height), excluding the 13 mm hose grommet that comes standard with the pump. But there is more! The Par Max HD4 also comes with a 40 mesh drinking water filter as standard. As a result, you receive a very complete pump system that can be directly installed in your onboard drinking water system.
| Feature | Details |
|---|---|
| Pump type | Diaphragm pump |
| Voltage | 12 Volt |
| Pump type | 4 chamber diaphragm |
| Flow rate | 15 litres per minute |
| Suction height | 2.4 metres |
| Working pressure | Switch on at 1.0 bar (15 psi), switch off at 2.8 bar (40 psi) |
| Dimensions | 240x104(excl. grommets)x97mm (lxwxh) |
| Weight | 2.5 kg |
| Special features | Can run dry, Thermal overload protection with Auto restart function |
| Including | 2 x 1/2 inch (13mm) hose pods, 40 mesh fine filter |
| Feature | Details |
|---|---|
| Working pressure | 25 psi (1.7 bar), 40 psi (2.8 bar) |
| Litres per minute | 15-19 litres per minute |
| Hose connection | 13 mm connection |
| Number of taps | 2 taps, 3 taps, 4 taps |
