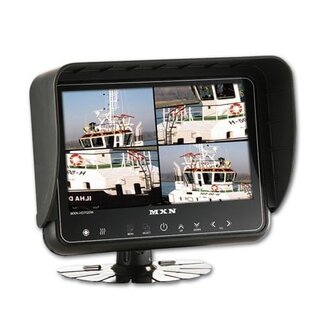

Monitor 7" type MXN-HD7DMQ 10-30V Quad HD

The Monitor 7" Type MXN-HD7DMQ 10-30V Quad HD is an advanced and high-quality display solution designed to display multiple camera images in high definition (HD). This model supports the Quad function, which allows you to view up to four cameras simultaneously on a single screen, in clear HD quality. The monitor is ideal for use in vehicles, industrial environments, security systems, boats and more, where multiple camera angles are essential for a good overview and maximum security.

Features:

• 7-inch HD LCD screen: The 7-inch screen offers high-resolution HD display, providing sharper images with more detail, so you can see each camera image clearly. This is ideal for applications where it is important to perceive fine details.
• Quad Display (4 Channels): The monitor supports the display of four different cameras simultaneously. This makes it perfect for vehicles such as trucks or RVs, ships, industrial environments and security systems where you need multiple camera images to get a complete overview.
• Wide Voltage Range (10-30V): The MXN-HD7DMQ operates at a voltage range of 10-30V, making it suitable for a wide range of applications, from vehicles (trucks, boats, RVs) to industrial and commercial environments where stable voltage is required.
• HD image quality: Thanks to HD resolution, the monitor offers superior image quality, providing a clearer, more detailed view of camera images. This is ideal for accurate surveillance or monitoring of complex environments.
• Durable and robust design: The monitor is designed to withstand harsh environments, shock and vibration, making it suitable for use in vehicles, ships, factories and other demanding applications.
• Adjustable brightness, contrast and colour: Brightness and contrast can be easily adjusted according to ambient lighting conditions, ensuring you always have the optimum image, whether in bright sunlight or dark environments.
• Easy installation: The monitor is easy to install and configure, with multiple mounting options for different usage situations. It is suitable for both indoor and outdoor applications.

Benefits:

• HD image quality: The MXN-HD7DMQ offers unrivalled HD image quality, providing sharper images and a better overview of camera images.
• Multiple camera images simultaneously: The Quad function allows up to four cameras to be displayed simultaneously on one screen. This allows users to monitor multiple areas simultaneously, which is especially important for vehicles, ships or industrial applications.
• Reliable in various environments: The robust construction and wide voltage range make the monitor ideal for use in demanding environments, such as trucks, boats, workshops and industrial facilities.
• High usability: The user-friendly interface makes it easy to operate the monitor, and brightness and contrast settings can be quickly adjusted for optimal image reproduction in different lighting conditions.
• Flexible deployment: Whether for vehicles, security systems, or industrial monitoring, the monitor is suitable for a wide range of applications due to the versatility of its connection options and robust design.

Applications:

• Vehicles (Trucks, Motorhomes, Boats): The MXN-HD7DMQ is ideal for use in vehicles equipped with multiple cameras, such as trucks, RVs or boats. It provides a clear view of the area around the vehicle, for example for reversing, monitoring cargo or checking obstacles.
• Security systems: This model is excellent for security systems where multiple camera images need to be viewed simultaneously, for example in car parks, commercial buildings or when monitoring different security zones in a commercial or industrial building.
• Industrial Applications: In industrial environments, the MXN-HD7DMQ can be used to monitor different production lines, machines or processes. It provides a clear overview of multiple cameras to ensure everything is running smoothly.
• Ships and boats: For maritime applications, such as monitoring different decks or around the ship, the monitor's Quad function can help in getting a complete overview of the situation on board.
• Powerful vehicles: For vehicles such as excavators, cranes or other heavy machinery that require multiple cameras to observe different angles, this monitor provides the perfect solution for safe and efficient operation.

Technical Specifications:

• Screen size: 7-inch LCD
• Display option: Quad (up to 4 cameras simultaneously)
• Resolution: HD (High image quality)
• Voltage range: 10-30V DC
• Colour: Black (compact and robust)
• Connections: Compatible with most cameras using standard video inputs (such as RCA, CVBS)
• Mounting options: Flexible mounting for different applications
• Ambient temperature: Suitable for use in both indoor and outdoor applications

The Monitor 7" type MXN-HD7DMQ 10-30V Quad HD provides a reliable and high-quality solution for anyone who needs a clear overview of multiple camera images simultaneously. Whether you are monitoring a vehicle, security system, industrial application or maritime environment, this monitor delivers outstanding performance with HD image quality, ease of use and robustness, making it an excellent choice for demanding environments.

• Category: Camera systems
• Product depth (mm) [mm]": "43.0
• Product height (mm) [mm]": "142.0
• Product width (mm) [mm]": "190.0
• Colour (END)": "Black
• Voltage (V) [V]": "12;24
• Voltage type (VAC / VDC) (NLD) [VAC / VDC]": "VDC
• Protection class (IP) [IP]": "IP69K
• Supplied with (NLD) [ ]": "Mounting material & lens hood
• Operating temperature (°C) [°C]":"-25° / +75
• Operating voltage VDC Range [VDC]": "10 - 30
• Consumption max (W) [W]": "15.0
• Connections": "4 x 4-p mini DIN, 1 x RCA A/V input
• Resolution": "800 x 480
• Brightness (cd/m²) [cd/m²]": "500.0
• Prepared for (NLD)": "Cameras with motorised shutter and camera heater
• Camera inputs [ ]": "4.0
• Image diagonal (inch/mm) [inch/mm]": "7" / 17.5 cm
